Set of 2 Left/Right speaker brackets OR a full set of 3 brackets which further includes the Center-dash speaker bracket (please choose 2 OR 3 brackets from “Locations” when ordering).

Left/Right brackets are 3mm thick and Center-dash bracket is 4mm thick. All brackets are made of PETG.

The brackets have been tested for installation of 4” Infinity Reference REF-4032cfx car speakers in the Tesla Model 3 front dash area. They fit the new speakers onto the stock locations and work with all 3 stock locations.

Your order will include:

• 2 speaker brackets for Left/Right only speaker installation, OR 3 brackets for Left/Right and Center-dash speaker installation

• zip ties for drill-free installation (2 zip ties needed per bracket)

• a roll of neoprene foam for lining the bottom of each bracket

Please see our installation videos page for step-by-step installation instructions.

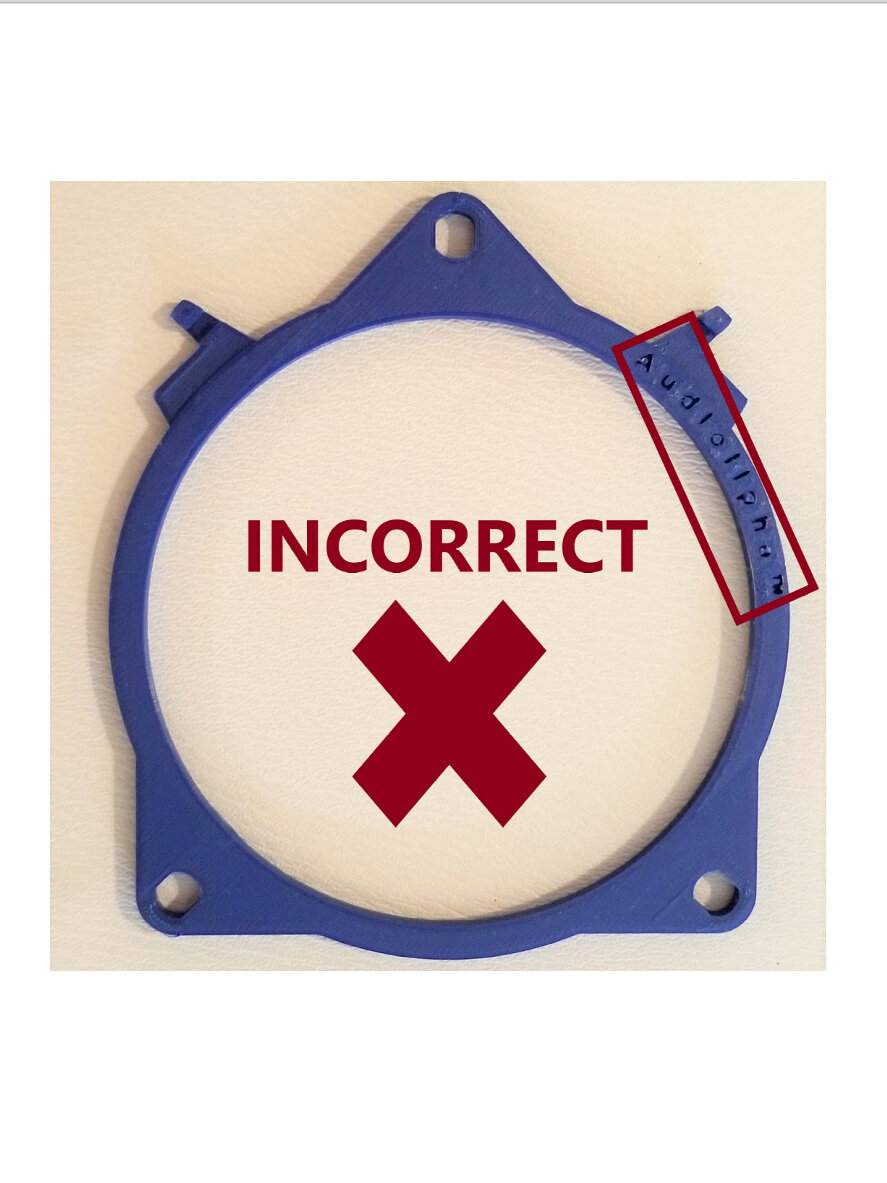

Please Note: the 2 Left/Right speaker brackets must be installed with the Audioliphe logo facing DOWN. The logo should NOT be visible when you have installed the bracket. We realize that this is counter-intuitive, but it is currently our best solution to the challenge of 3D printing such a small detail as our logo.

We appreciate your understanding!

Drill-free design:

These brackets were designed to allow for easy “drill-free” installation.

The drill-free design is built to use small zip-ties for the tabs to hold the 2 screw locations on the Infinity speaker that do not correspond to screw holes on the Tesla. The other 2 screw holes correspond exactly and do not require external attachment. Alternatively, you can epoxy the speaker to the bracket and then just screw the bracket down.

Either way, you will not need to drill any holes to secure the speaker at all mounting points!
